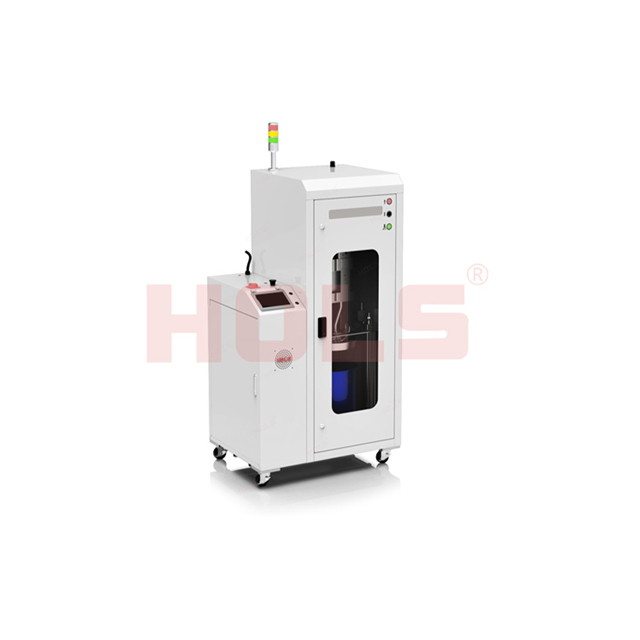

The vacuum pressure plate pump is specifically designed for conveying high viscosity media from raw material barrels, including three series: SP210, SP260, and SP280. It helps to dock materials without bubbles and almost completely empty the bucket. Alternatively, if there are no standard sized containers, our feeding device can also be equipped with traditional rubber pressure plates.
Liquid level display and alarm;
Automatic alarm when empty loading;
Vacuum pressure plate;
Reciprocating pump, screw pump, double, screw pump, dual plunger pump;
Product data | SP2101 | SP2102 | SP2601 | SP2602 | SP2801 | SP2802 |
Number of material components | 1K | 2K | 1K | 2K | 1K | 2K |
Reciprocating pump delivery rate
with 20 double strokes [l/min] | 0.6 | - | - |
Feeding rate [l/min] | - | 1 | - |
Dual-piston pump delivery volume
[cm3/stroke] | - | - | 260 |
Feeding pump | Reciprocating pump | Screw pump | Dual-piston pump |
Material feed pressure max. [bar] | 100 | 20 | 25 |
Dimensions (W x H x D) [mm] | 900 x 1850 x 700 | 1500 x 1850 x 700 | 900 x 1850 x 700 | 1500 x 1850 x 700 | 900 x 1850 x 700 | 1500 x 1850 x 700 |
Weight (without material) [kg] | 200 | 330 | 210 | 350 | 230 | 390 |
